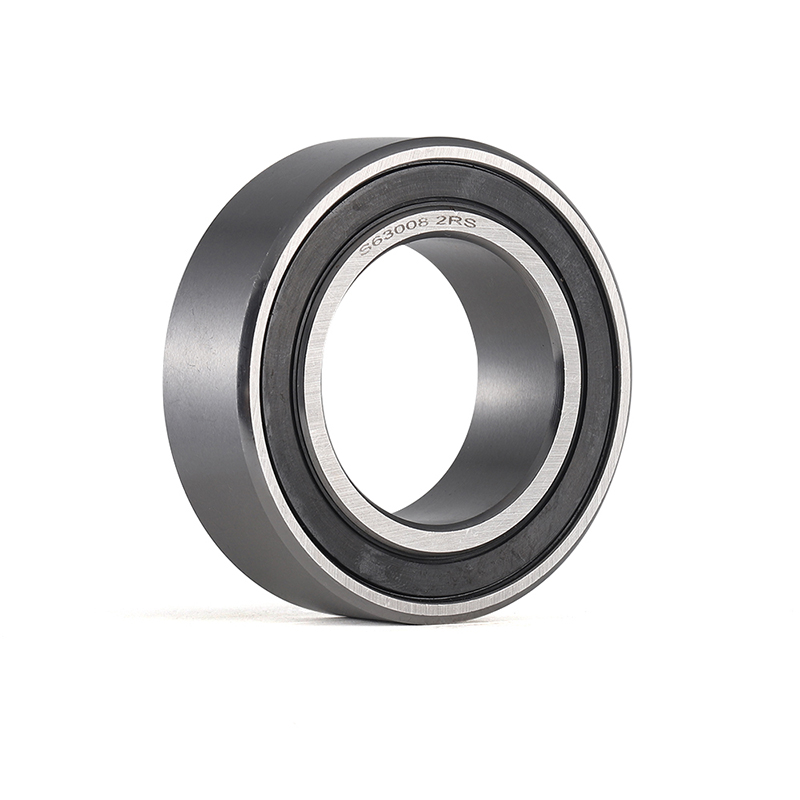

The S63000 series bearings are widened bearings, featuring a greater width compared to the S6000 series. For example, both S63000 and S6000 bearings have the same outer diameter of 26mm and inner diameter of 10mm. However, the width of the S63000 is 12mm, while the S6000 has a width of 8mm. Despite this difference, these two bearings share the same internal parameters, including cage structure, steel ball size, and the number of steel balls.
Keywords: S63000 Bearings, S6000 Bearings, Widened Bearings, Thin-Walled Bearings, Bearing Comparison, Cage Structure, Steel Ball Size, Precision Bearings
The current S63000 series bearing models(AISI 420) available in our company's warehouse are as follows. The delivery time has been shortened to 3 days. We can also produce non-standard bearings. For specific delivery dates, please get in touch with
| type | d(mm) | D(mm) | B(mm) | Cr（KN) | Cor（KN) | rpm（grease） | rpm（oil） | weight（Kg) |
| S63000 ZZ/2RS | 10 | 26 | 12 | 4.62 | 1.96 | 13000 | 15000 | 0.0250 |
| S63001 ZZ/2RS | 12 | 28 | 12 | 5.07 | 2.36 | 12000 | 14000 | 0.0290 |
| S63002 ZZ/2RS | 15 | 32 | 13 | 5.59 | 2.85 | 11500 | 13000 | 0.0390 |
| S63003 ZZ/2RS | 17 | 35 | 14 | 6.05 | 3.25 | 11000 | 12000 | 0.0520 |
| S63004 ZZ/2RS | 20 | 42 | 16 | 9.36 | 5.00 | 10000 | 11000 | 0.0860 |
| S63005 ZZ/2RS | 25 | 47 | 16 | 11.20 | 6.55 | 9500 | 10000 | 0.1050 |
| S63006 ZZ/2RS | 30 | 55 | 19 | 13.30 | 8.30 | 8000 | 9000 | 0.1600 |
| S63007 ZZ/2RS | 35 | 62 | 20 | 15.90 | 10.20 | 7000 | 8000 | 0.2100 |
| S63008 ZZ/2RS | 40 | 68 | 21 | 16.80 | 11.60 | 6300 | 7000 | 0.2600 |
| S63009 ZZ/2RS | 45 | 75 | 23 | 20.80 | 14.60 | 5600 | 6000 | 0.3400 |
| S63010 ZZ/2RS | 50 | 80 | 23 | 21.60 | 16.00 | 5000 | 5500 | 0.3700 |
