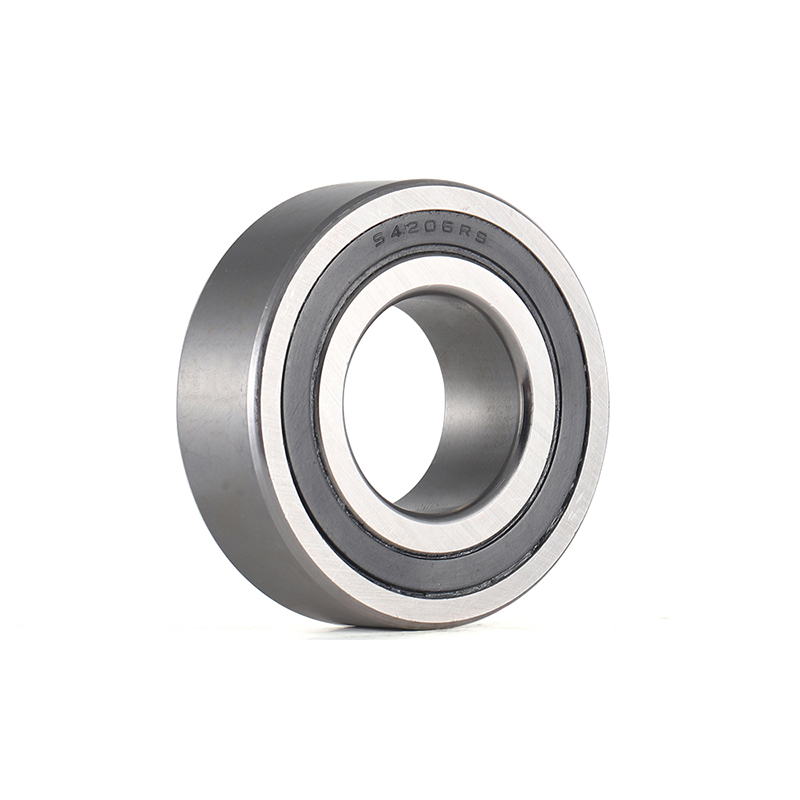

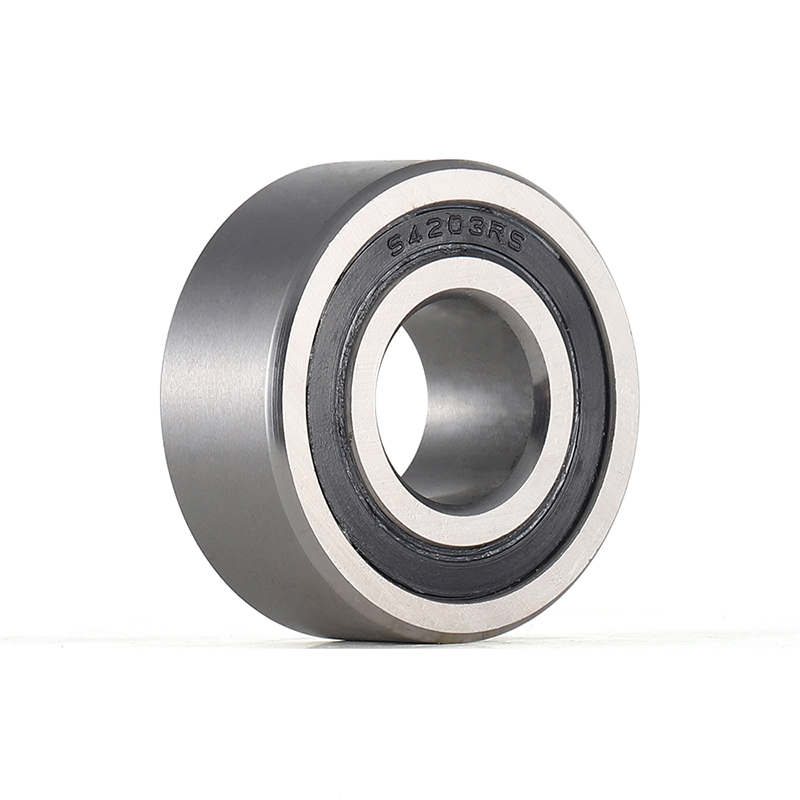

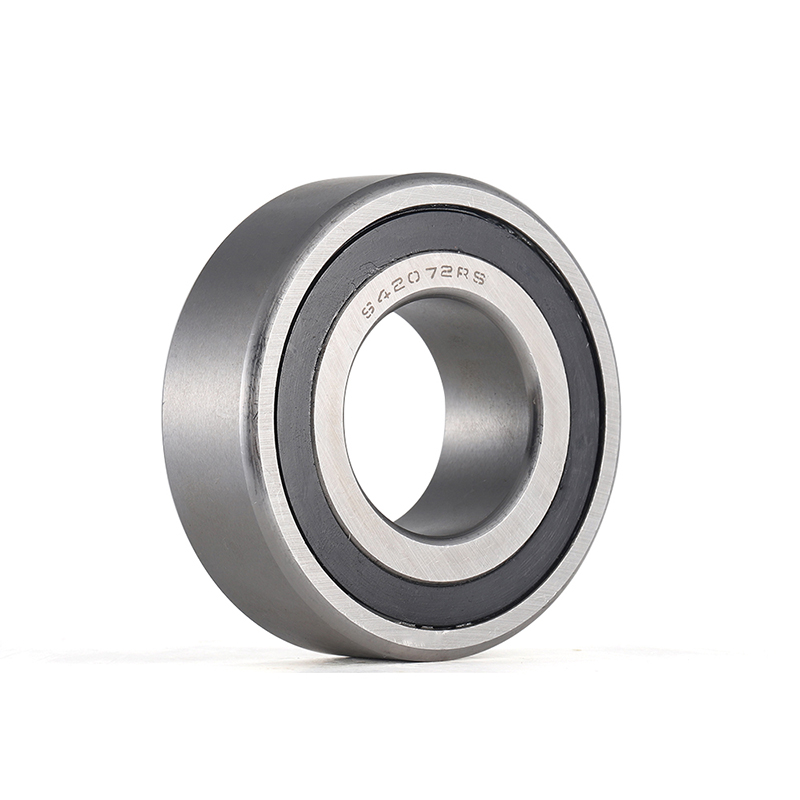

The S4200 series bearings are double-row deep groove ball bearings, designed similarly to two paired single-row deep groove ball bearings. These bearings offer the following features:
Double-row design: Comprising two parallel deep groove ball bearings, they can simultaneously withstand radial loads and bidirectional axial loads.
High-speed performance: Engineered for high-speed operation with low noise and excellent operational stability.
Material and corrosion resistance: Manufactured from stainless steel, providing superior corrosion resistance.
Medical devices: Ideal for equipment requiring high levels of hygiene and corrosion resistance.
Aerospace: Capable of enduring heavy loads and harsh environments.
Robotics: Fits well in mechanical arms and joints demanding high precision and reliability.
Precision instruments: Ensures smooth and reliable operation during high-speed processes.
Baoci Bearing's S4200 series bearings are the perfect choice for high-precision, high-load applications due to their outstanding performance and durability. Upgrade your machinery today with Baoci's premium bearings!
The current S4200 series bearing models(AISI 420) available in our company's warehouse are as follows. The delivery time has been shortened to 3 days. We can also produce non-standard bearings. For specific delivery dates, please get in touch with
| type | d(mm) | D(mm) | B(mm) | Cr(KN) | Cor(KN) | rpm(grease) | rpm(oil) | weight(Kg) |
| S4200 2RS | 10 | 30 | 14 | 9.23 | 5.20 | 18000 | 22000 | 0.0490 |
| S4201 2RS | 12 | 32 | 14 | 10.60 | 6.20 | 17000 | 20000 | 0.0530 |
| S4202 2RS | 15 | 35 | 14 | 11.90 | 7.50 | 14000 | 17000 | 0.0590 |
| S4203 2RS | 17 | 40 | 16 | 14.80 | 9.50 | 12000 | 15000 | 0.0900 |
| S4204 2RS | 20 | 47 | 18 | 17.80 | 12.50 | 10000 | 13000 | 0.1400 |
| S4205 2RS | 25 | 52 | 18 | 19.00 | 14.60 | 9000 | 11000 | 0.1600 |
| S4206 2RS | 30 | 62 | 20 | 26.00 | 20.80 | 8000 | 9500 | 0.2600 |
| S4207 2RS | 35 | 72 | 23 | 35.10 | 28.50 | 6700 | 8000 | 0.4000 |
| S4208 2RS | 40 | 80 | 23 | 37.10 | 32.50 | 6000 | 7000 | 0.5000 |
| S4209 2RS | 45 | 85 | 23 | 39.00 | 36.00 | 5600 | 6700 | 0.5400 |
| S4210 2RS | 50 | 90 | 23 | 41.00 | 40.00 | 5000 | 6000 | 0.5800 |
